Rackmount chassis Server case 19 inch dual mini-itx 1U blade M550

Drives2 * 3.5" or 4 * 2.5" each blade / total 4 * 3.5 or 8 *2.5 (can mix)

Motherboard SizeDual 6.7 * 6.7 (mini-ITX)

Dimension19.00 * 1.75 * 21.65" / 482 * 44.5 * 550 (mm)

Order Now

DESCRIPTION

VIDEO

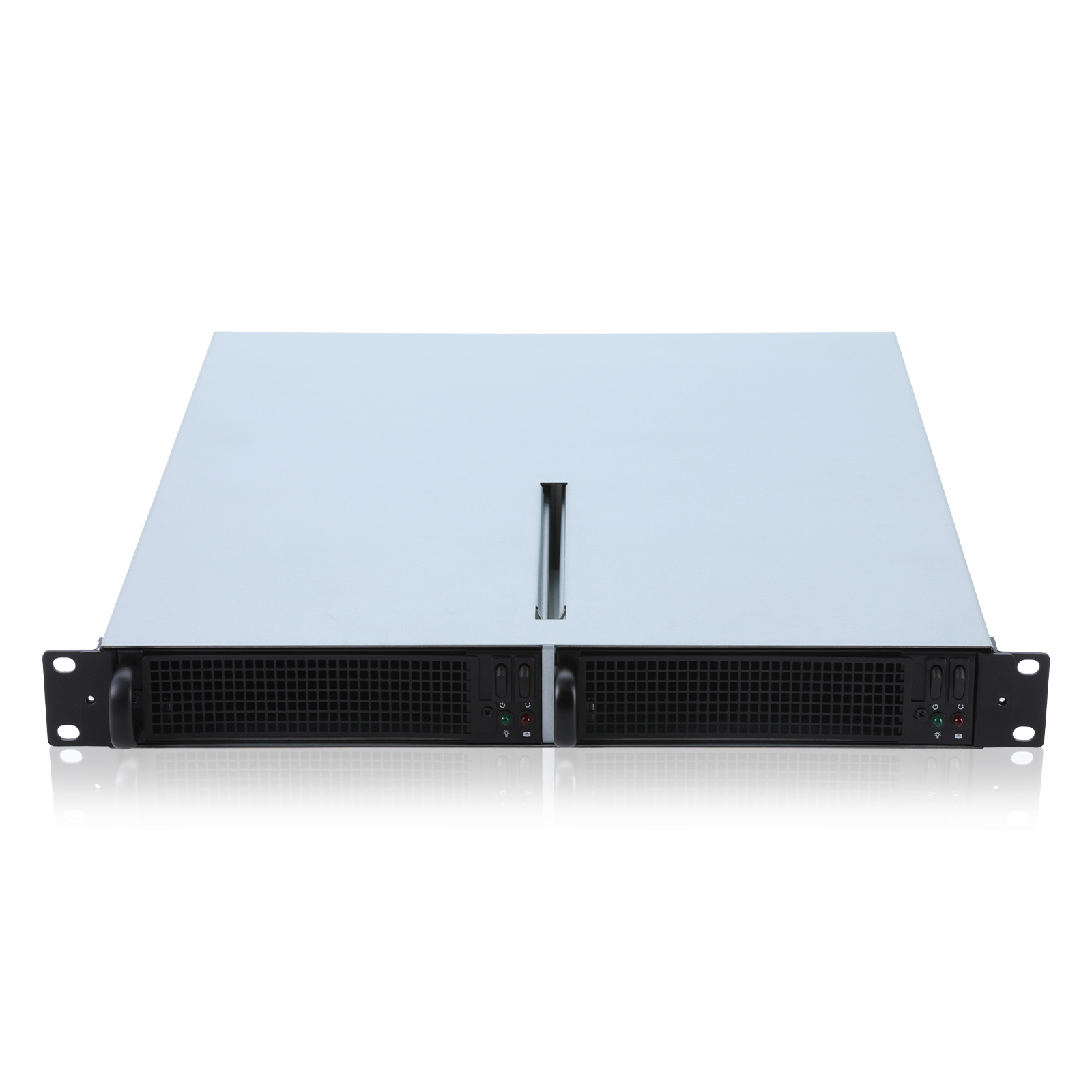

1U Rackmount compact blade Dual mini-itx system Chassis

  • 4 x 3.5" (int.) or 8 x 2.5"
  • Support two mini-itx mother board for server or waves lv1
  • Universal I/O plate support standard I/O interfaces can be customized

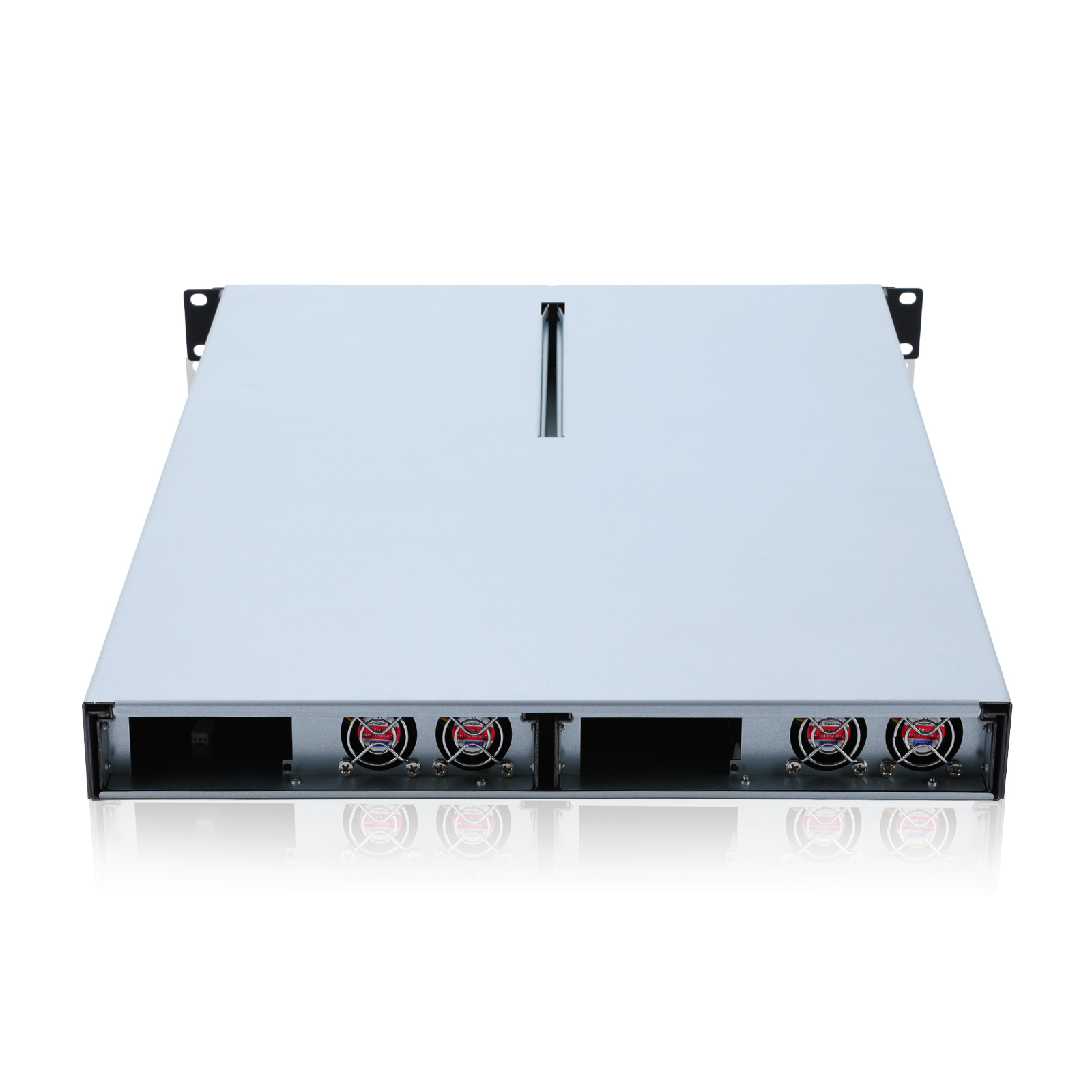

  • 4 x 40mm cooling fan using the 1U space high efficiency (total 8 x 40mm fan in two blade)

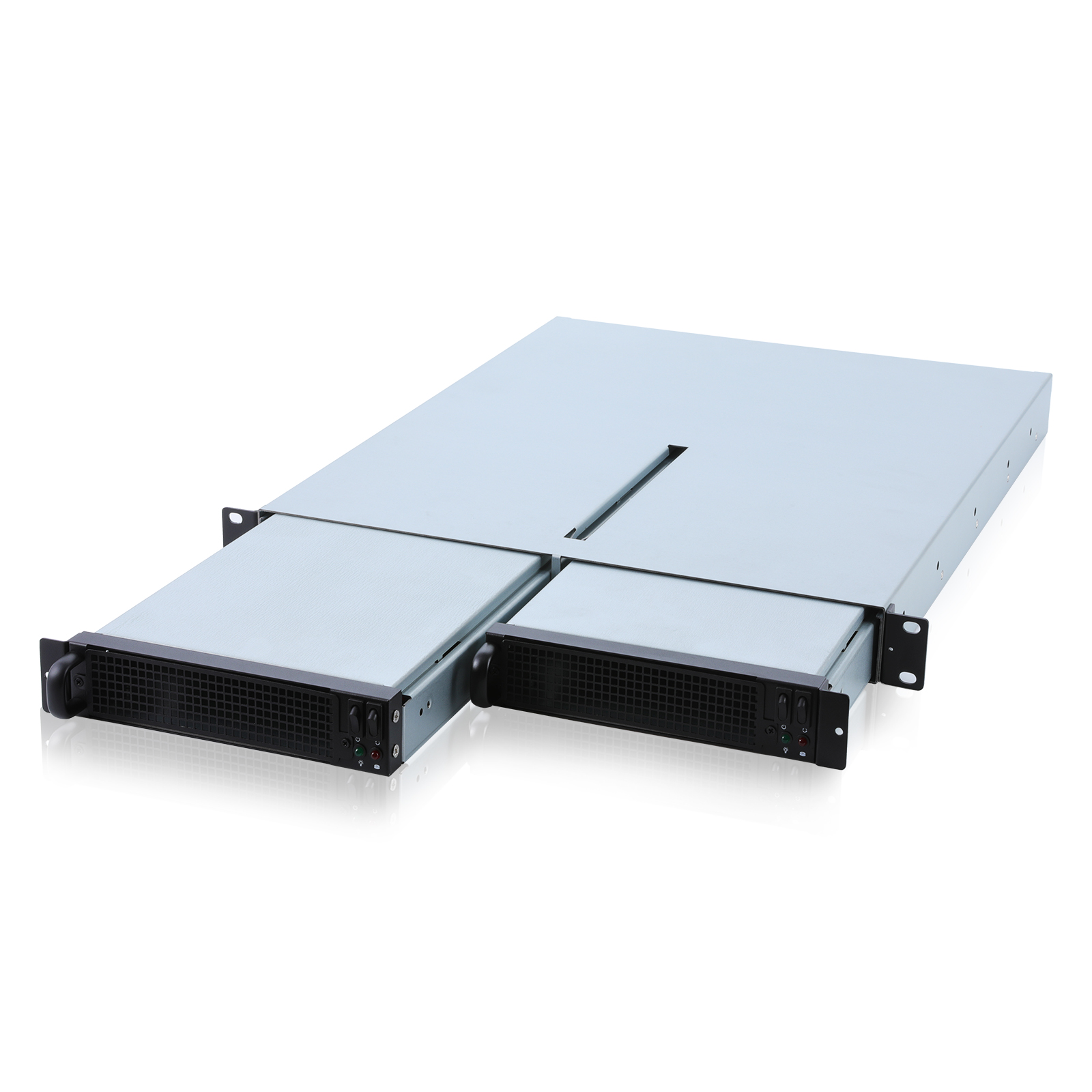

  • Two Tool-less blade for quick maintenance



Introduction

M550 is a stable 1U-high blade chassis, the chassis include two Tool-less blade for quick maintenance,supports dual mini-ITX motherboard and front access I/O, This chassis is equipped with 8 x 40mm cooling fans. (three at middle, two at rear for each node),and support 1U flex PSU for each blade. and the universal I/O plate support standard I/O interfaces can be customized


Model Number           KI-M550
Dimension (W*H*D) 19" x 1.75" x 21.65"/ 482 x 89 x 550 (mm)
Motherboard Size Two 6.7" x 6.7" (Mini ITX)
Drive Bays 4 x 3.5" or 8 x 2.5" (int.)
Indicators LEDs for Power & HDD
Switches 2 x Power +2 x Reset
PSU Type

 2 x 1U Flex PSU

Expansion Slots N/A
Material of Front Bezel  Heavy-duty & Rugged SGCC steel 1.0mm
Material of Handle Aluminum
Material Construction Heavy-duty & Rugged SGCC steel 1.0mm
Sliding rail 1U ball bearing sliding rail (option)
Color of Main Chassis  Black
Front Connector I / O front access
Fan: 8 x 4cm fan
Packing size CBF / CBM 2.3 / 0.06
Packing N.W / G.W    10KGS / 12KGS
