Rackmount chassis Server case 19 inch ATX Micro atx mini-itx 4U 8bay hotswap 6Gbs N408RM

Drives8 x 3.5" hot swap SATA/SAS (2.5" compatible)+ 1 x 3.5"

Motherboard Size12" * 13" ( EATX, ATX M/B)

Dimension19" x 7" x 26.78"/ 482 x 177 x 680 (mm)

Inquiry

DESCRIPTION

VIDEO

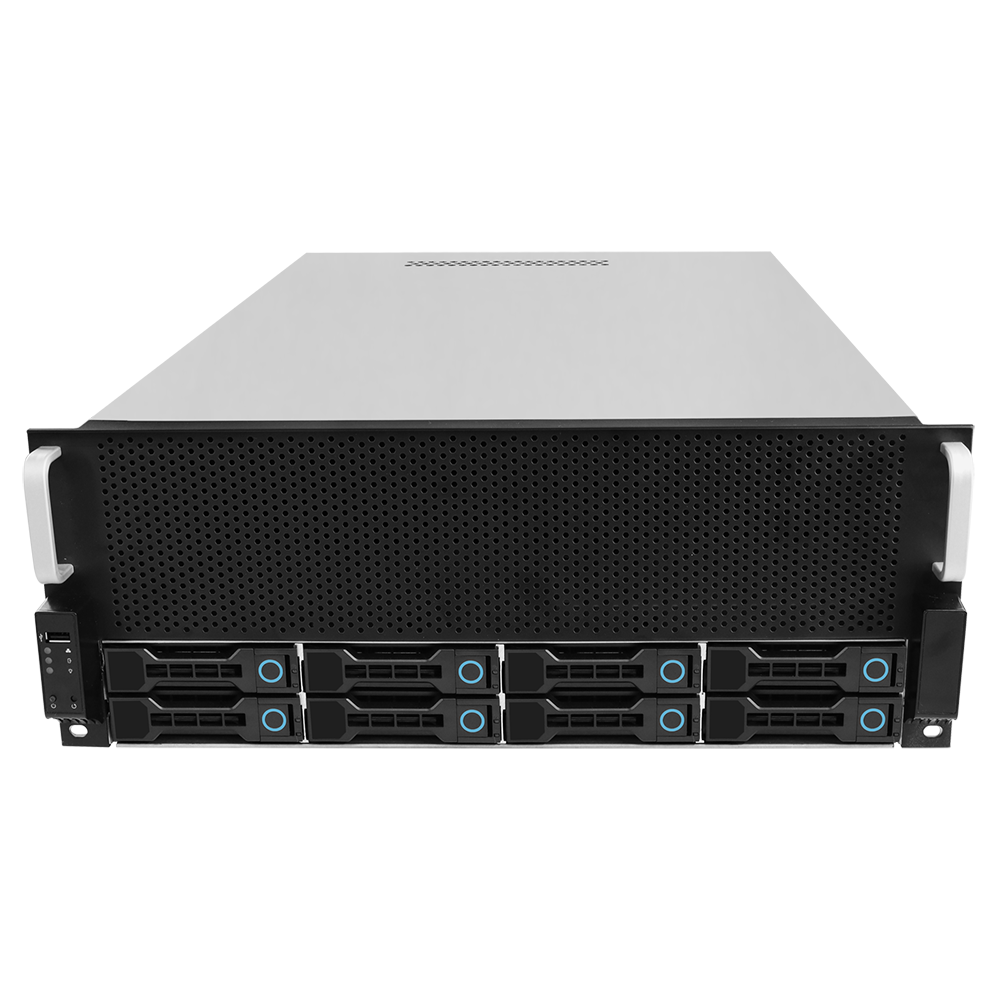

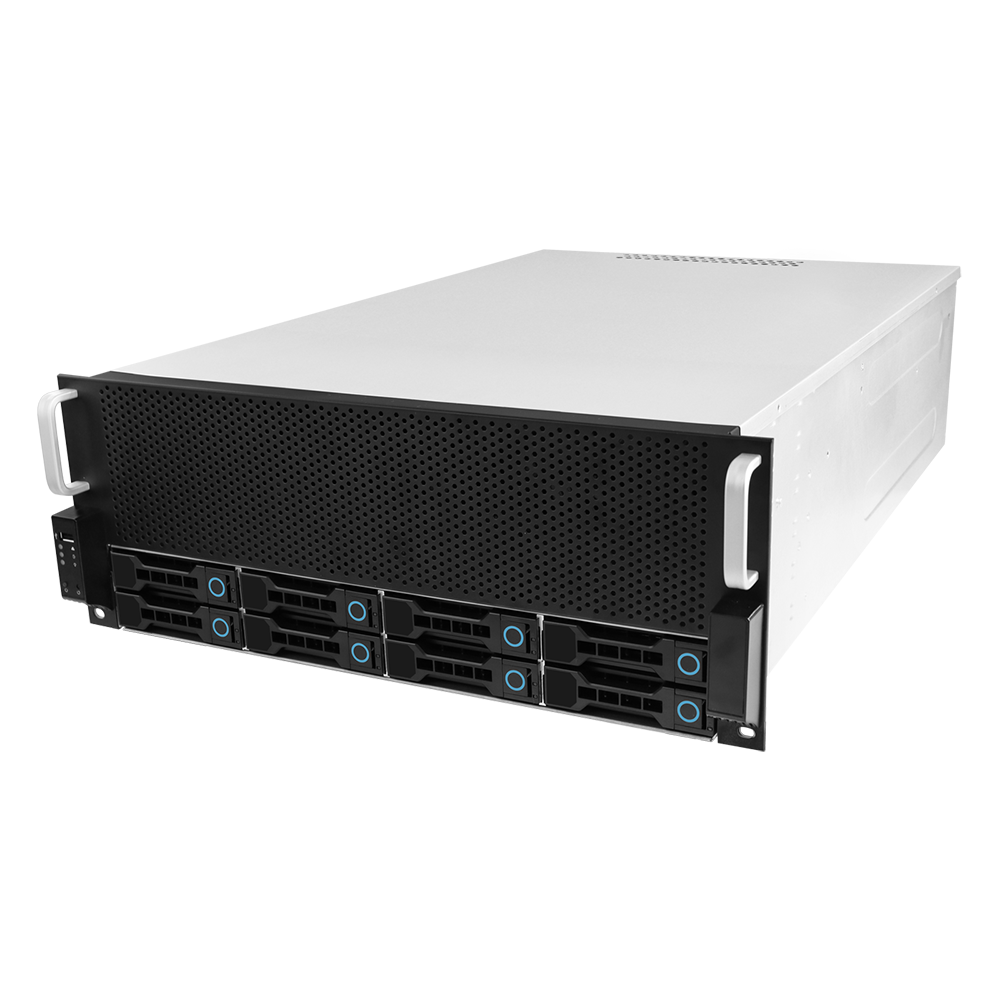

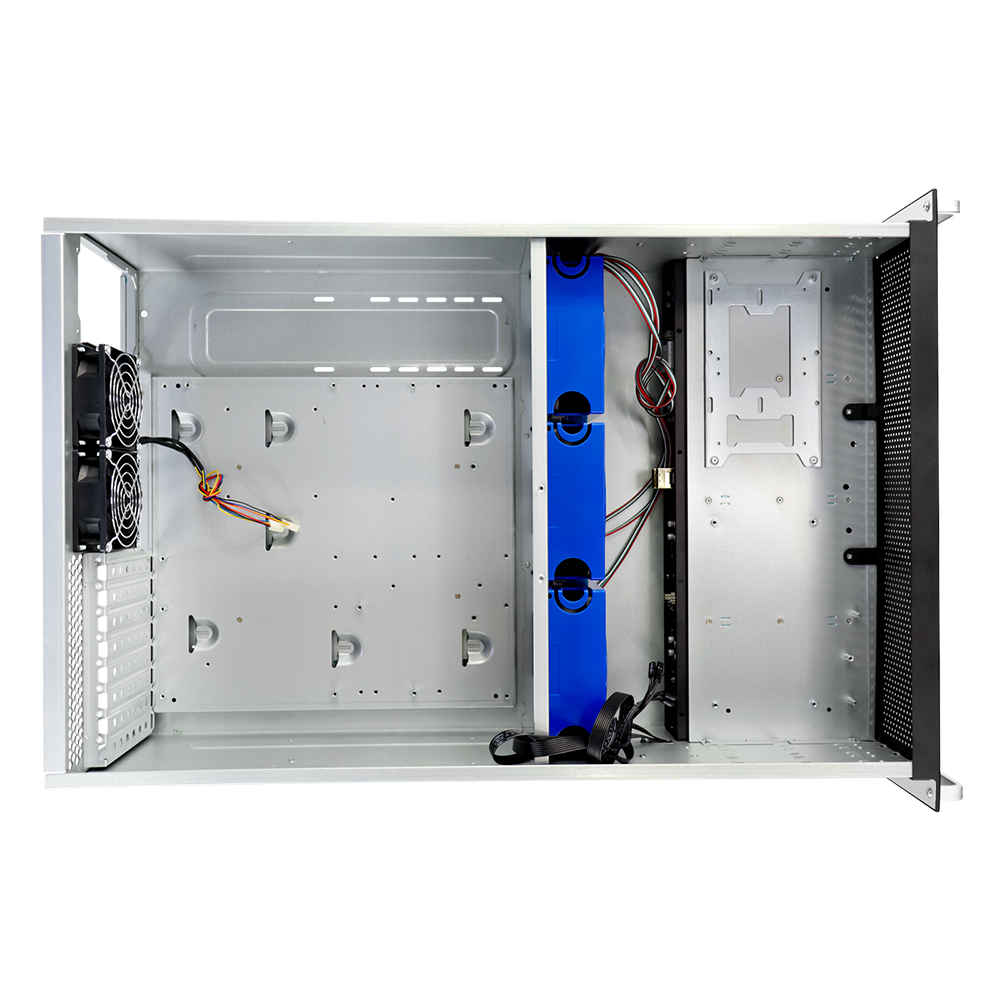

4U compact 8 x 3.5" Trayless hotswap rackmount EATX Chassis support ATX PSU

  • Support 12" * 13" ( EATX, ATX M/B)
  • 8 * 3.5" hot swap SATA/SAS (2.5" compatible) +1*3.5(fix)
  • MiniSAS (SFF-8087) HDD Backplane
  • 3 x 12038 Ball bearing  fan wall at middle + 2 x 8cm at rear (option)


Introduction

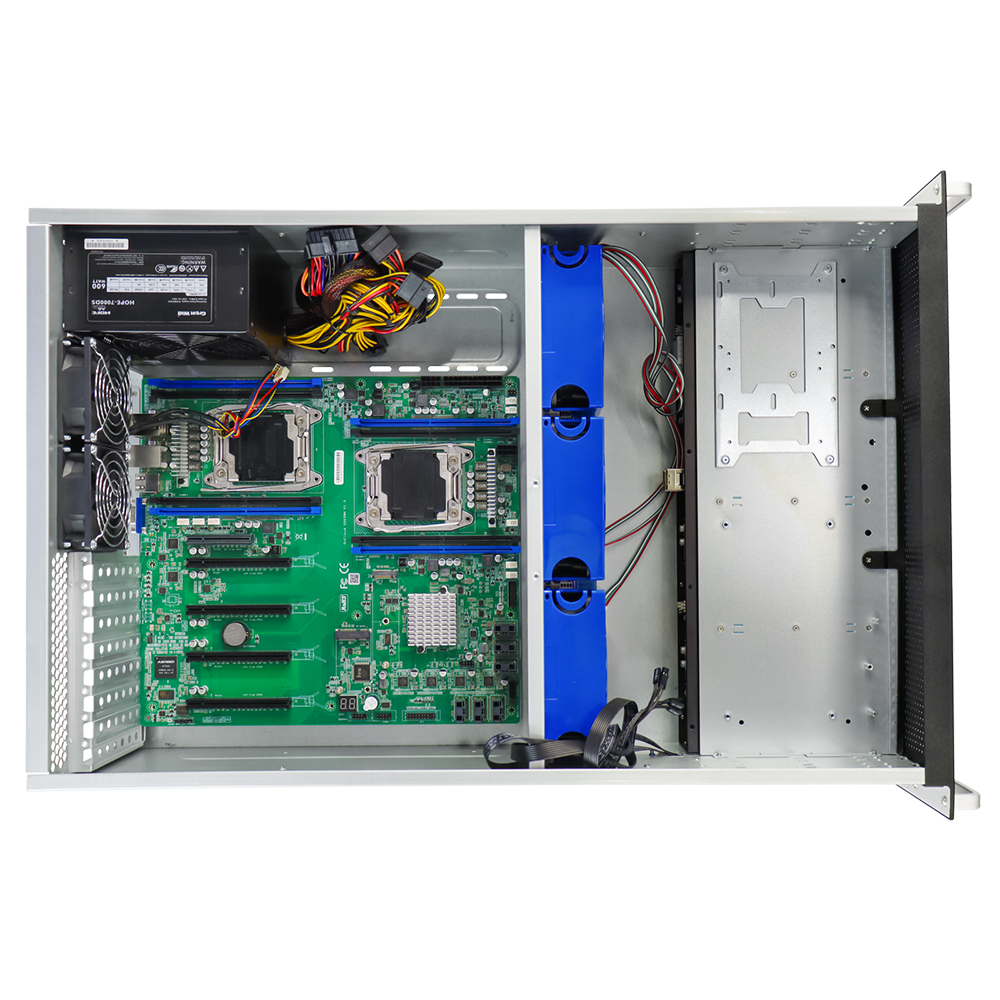

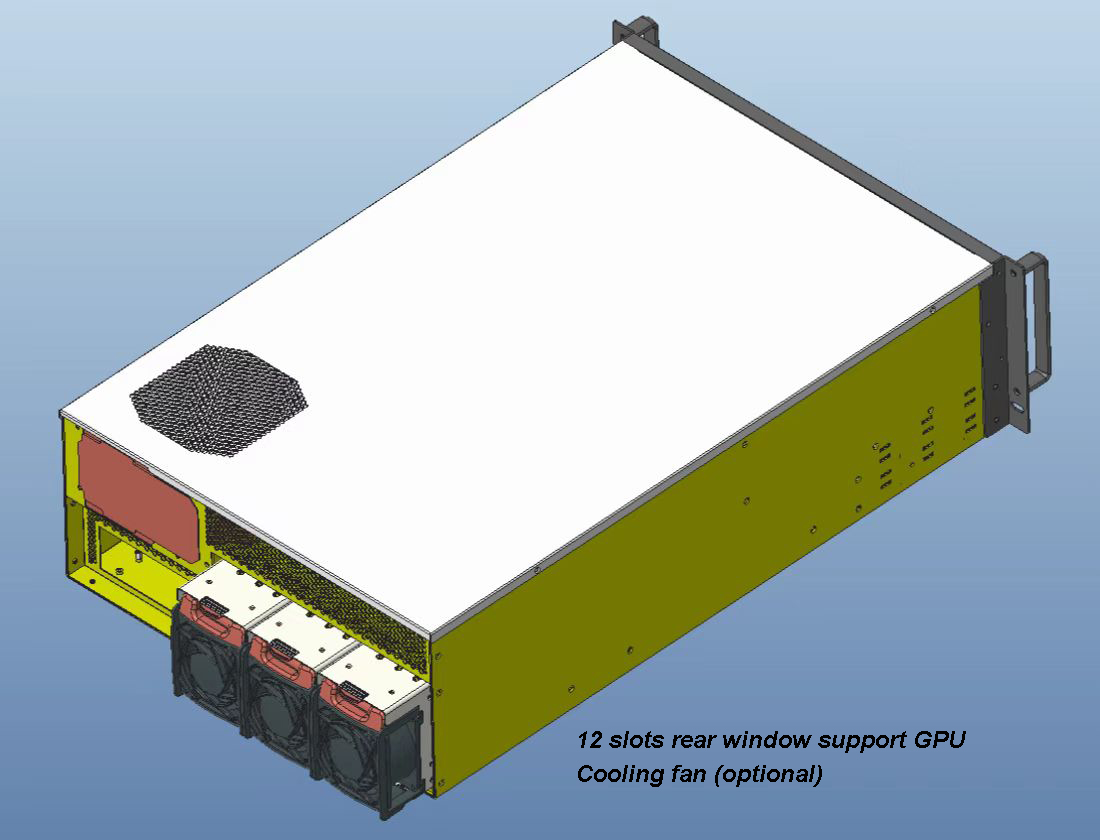

KI-N408RM is a compact 4U chassis, support EATX server M/B, it with the stylish appearance, the functionality and flexibility make storage server. As SAS / SATA technology has become a more cost effective solution, we provide SATA / SAS  backplane to support both latest SAS and SATA hard drives, and also provide regular ATX power supply to ensure the server applications. The optional 12 slots rear window provide the GPU cooler space.


Model Number           KI-N468RM
Dimension (W*H*D) 19" x 7" x 26.78"/ 482 x 177 x 680 (mm)
Motherboard Size 12" x 13"(EATX, ATX,)
Drive Bays 8 * 3.5" hot swap SATA/SAS (2.5" compatible)+ 1 x 3.5"
Indicators LEDs for Power & HDD
Switches 1 x Power +1 x Reset
PSU Type

 ATX PS2  or Redundant PSU

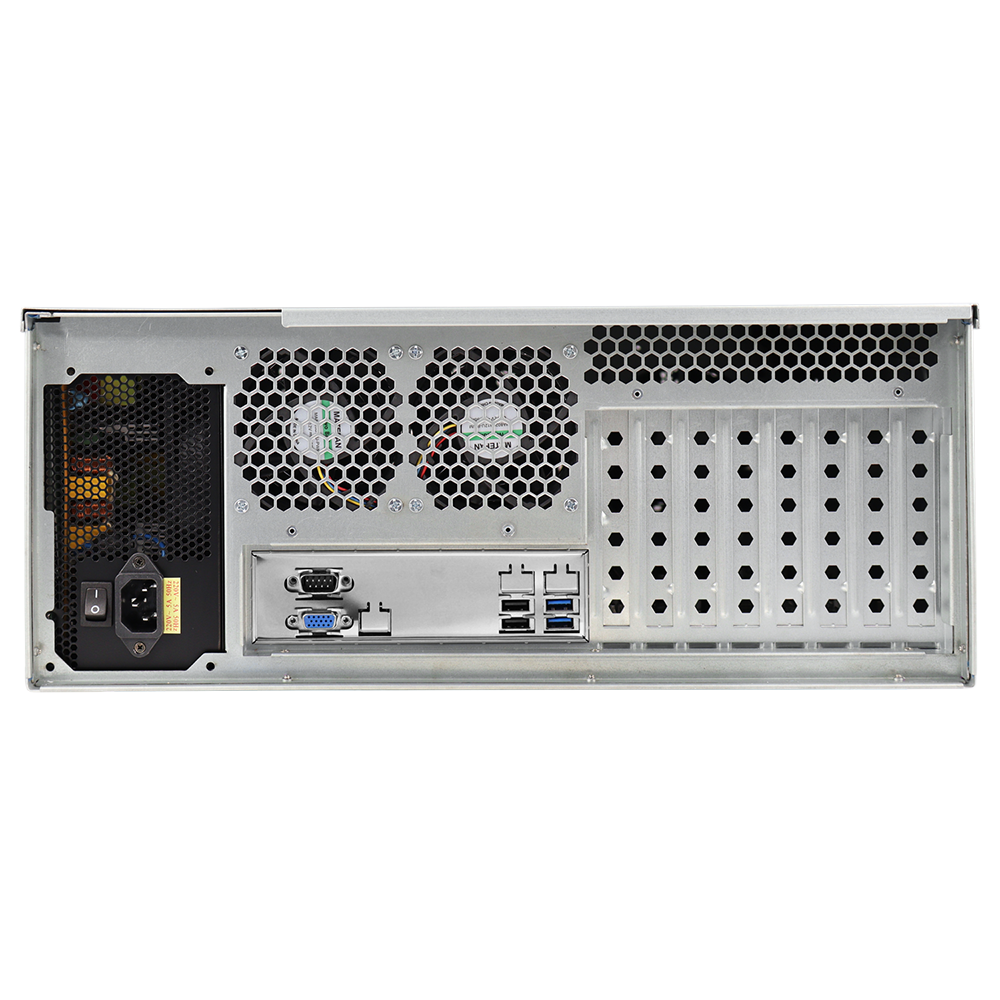

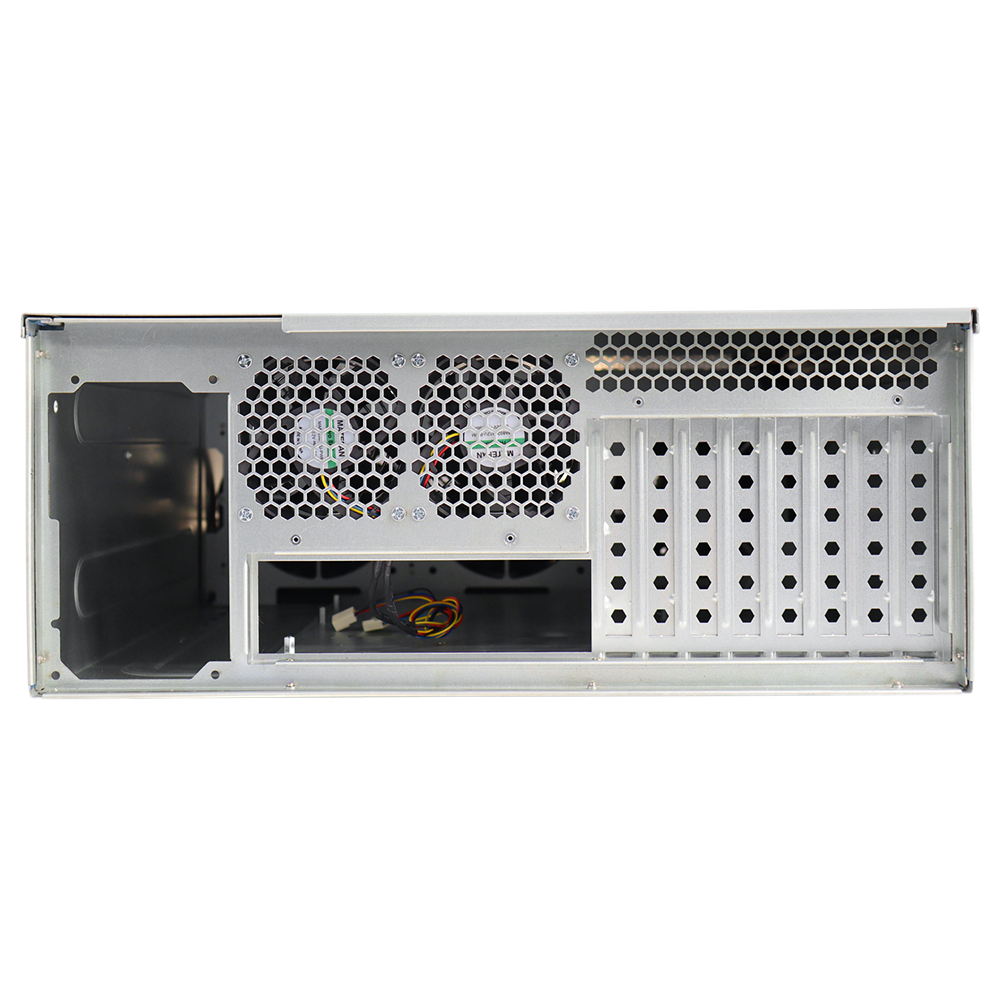

Expansion Slots 7 x Full height PCI slot
Material of Front Bezel  Heavy-duty & Rugged SGCC steel 1.2mm
Backplane MiniSAS (SFF-8087) HDD Backplane Support 6.0Gb/s SAS/SATA Hard Drive
Material Construction Heavy-duty & Rugged SGCC steel 1.2mm
Sliding rail 26" ball bearing sliding rail (option)
Color of Main Chassis  Black
Front Connector 1 x USB2.0

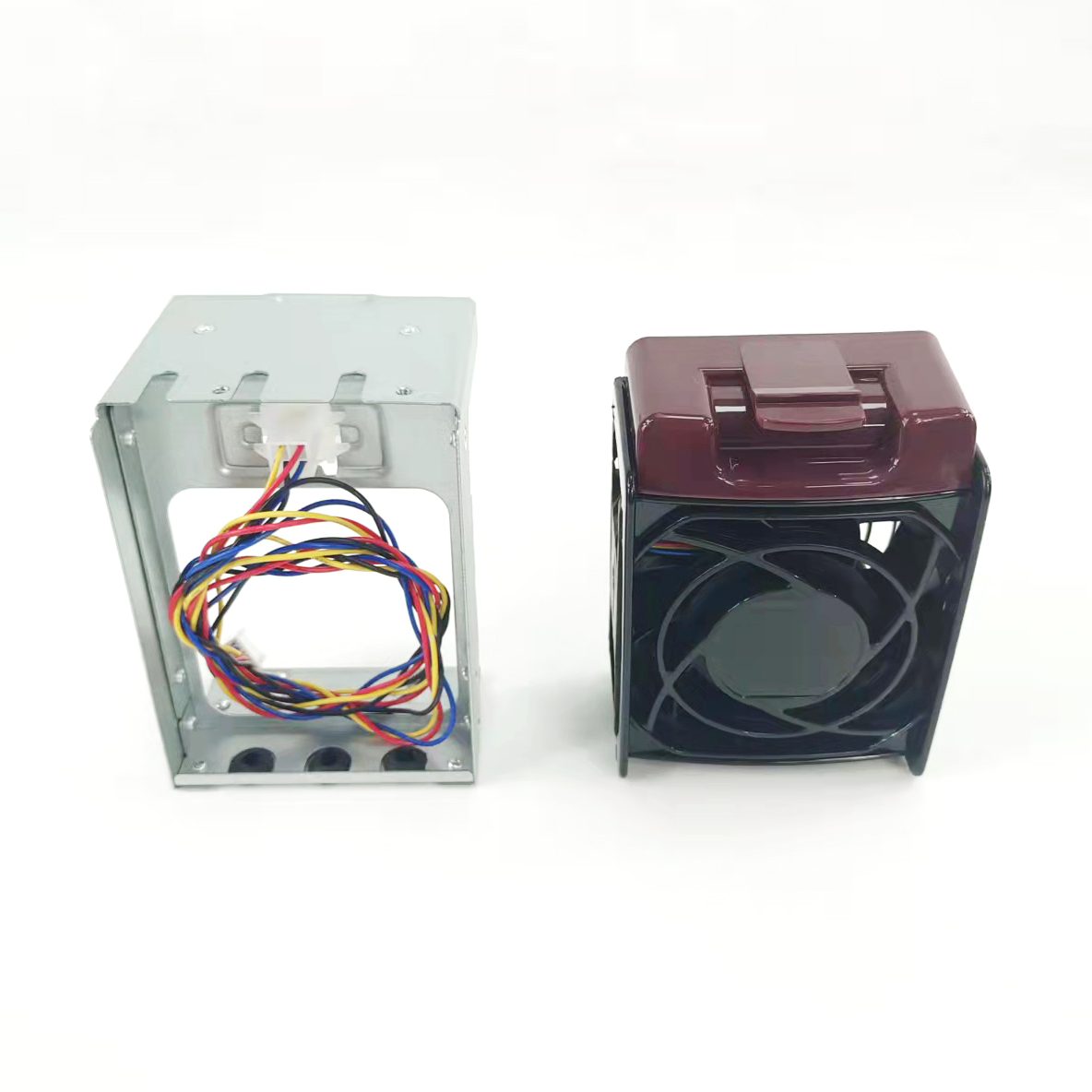

Fan: 3 x 12038 Hotswap PWM ball bearing fan + 2 x 8cm PWM fan
Packing size CBF / CBM 4.9 / 0.14
Packing N.W / G.W  16KGS / 18KGS
